Sanitary liquid preparation tanks are essential process vessels for pharmaceutical, biotechnology, food, fine chemical, and medical production facilities. They are used to dissolve, blend, suspend, heat, hold, and thermally preserve liquid materials under controlled and hygienic conditions. A well-designed preparation tank must do more than contain a liquid. It must provide reliable agitation, consistent heat transfer, safe operation, efficient cleaning, convenient maintenance, and compatibility with the process environment.

The sanitary stainless steel liquid preparation tank with agitator supplied by Zhejiang Shuangzi Intelligent Equipment Co., Ltd. is designed as a configurable process solution for liquid preparation and related manufacturing operations. The equipment is available in nominal volumes from 100 liters to 10,000 liters, with customized dimensions, connections, accessories, and process configurations available for specific production requirements. Its applications include pharmaceutical liquid preparation, biochemical processing, food and beverage manufacturing, fine chemical blending, thermal preservation, and supporting operations in integrated turnkey projects.

Unlike a basic storage vessel, this type of tank combines a sanitary vessel body, an agitation system, mechanical sealing, process connections, and optional heating or preservation functions. The equipment can be incorporated into a larger production line or supplied as part of an engineering package involving process design, equipment manufacture, installation, commissioning, automation, and system integration.

1. The Role of a Liquid Preparation Tank in Modern Processing

Many liquid products require controlled preparation before filling, fermentation, extraction, concentration, sterilization, or further downstream treatment. Raw materials may need to be dissolved into a carrier liquid, blended to a uniform concentration, heated to a defined temperature, or held for a specified period. In other processes, solid ingredients must remain evenly suspended to prevent settling and maintain product consistency.

A preparation tank provides the process space where these operations can take place under defined mechanical and thermal conditions. The agitator promotes circulation throughout the vessel, minimizing concentration gradients and helping operators achieve a homogeneous mixture. When heating or thermal preservation is required, the tank can be fitted with an appropriate thermal-control arrangement based on the process design.

In pharmaceutical and biochemical applications, equipment hygiene and product protection are especially important. Internal wetted surfaces must be smooth, corrosion-resistant, and easy to clean. Process connections should allow rapid disassembly and avoid unnecessary contamination risks. Mechanical seals must reduce leakage around the rotating shaft, while the drive system must deliver stable and controllable agitation.

Food and fine chemical manufacturers have similar requirements, although the materials, temperatures, viscosities, and cleaning methods may vary. A single tank platform may therefore need to be adapted for low-viscosity liquids, concentrated solutions, emulsions, suspensions, or temperature-sensitive formulations.

2. Product Configuration and Main Technical Characteristics

The standard product range covers nominal volumes of 100, 200, 600, 1,000, 2,000, 3,000, 5,000, and 10,000 liters. These sizes provide a practical selection for laboratory-scale production support, pilot operations, intermediate batches, and larger industrial preparation systems. The manufacturer can also develop non-standard capacities and dimensions where the process requires a different working volume, height limitation, diameter, or installation arrangement.

The tank is designed with internal wetted surfaces manufactured from SUS304 or SUS316L stainless steel. SUS304 provides a strong combination of mechanical durability, corrosion resistance, cleanability, and cost efficiency for many general-purpose applications. SUS316L offers enhanced resistance in more demanding environments, including processes involving certain salts, acids, cleaning chemicals, or pharmaceutical formulations.

The equipment is rated for a working pressure of 0.25 MPa in the listed standard configuration and a working temperature of up to 100°C. Actual operating limits depend on the final design, material selection, wall thickness, heating or cooling arrangement, pressure conditions, fluid characteristics, and applicable vessel standards. Process-specific design verification should be completed before manufacture and operation.

The agitation system has a listed variable range of 0 to 720 revolutions per minute in the technical table. The standard process description also identifies commonly used stirring speeds of approximately 36 to 53 revolutions per minute for particular preparation duties, while variable-frequency control can be configured when the application requires adjustable speed. This broad range allows the tank to be adapted to different mixing objectives, from gentle circulation and thermal uniformity to higher-speed dispersion or suspension duties.

The rotating shaft is equipped with an imported sanitary mechanical seal. This component is intended to reduce leakage at the shaft penetration and protect the surrounding working environment from contact with the processed liquid. The agitation drive may be fitted with a SEW German-brand reducer, providing a recognized industrial transmission solution for stable torque delivery and continuous operation.

Pipeline connections use ISO-standard quick clamp couplings. These connections support convenient disassembly, inspection, cleaning, maintenance, and reconfiguration. Each tank can be equipped with a suitable set of process nozzles and accessories, which may include liquid inlet and outlet connections, sampling ports, temperature measurement points, pressure-related fittings, spray or cleaning devices, sight components, vent connections, and instrumentation interfaces, depending on the final process specification.

Nominal Volume	Working Pressure	Working Temperature	Stirring Speed	H	H1	D	D1	h
100 L	0.25 MPa	100°C	0–720 rpm	1,750 mm	450 mm	750 mm	550 mm	300 mm
200 L	0.25 MPa	100°C	0–720 rpm	1,950 mm	600 mm	850 mm	650 mm	300 mm
600 L	0.25 MPa	100°C	0–720 rpm	2,500 mm	1,000 mm	1,100 mm	900 mm	350 mm
1,000 L	0.25 MPa	100°C	0–720 rpm	2,850 mm	1,200 mm	1,300 mm	1,100 mm	350 mm
2,000 L	0.25 MPa	100°C	0–720 rpm	3,350 mm	1,500 mm	1,500 mm	1,300 mm	350 mm
3,000 L	0.25 MPa	100°C	0–720 rpm	3,700 mm	1,700 mm	1,700 mm	1,500 mm	350 mm
5,000 L	0.25 MPa	100°C	0–720 rpm	4,250 mm	2,000 mm	2,000 mm	1,800 mm	400 mm
10,000 L	0.25 MPa	100°C	0–720 rpm	5,000 mm	2,500 mm	2,500 mm	2,300 mm	400 mm

The dimensions in the table are reference values for the listed standard models. Final dimensions may change according to the selected agitator, insulation, heating or cooling jacket, platform, support structure, nozzle arrangement, instrumentation, clean-in-place system, and site conditions.

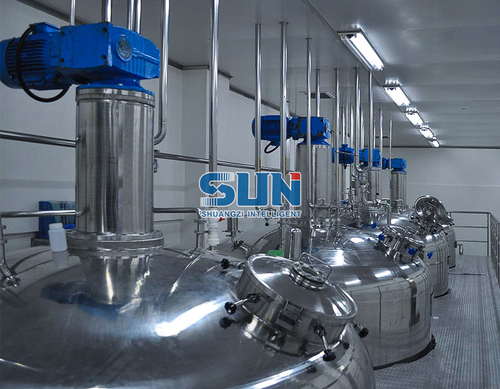

Sanitary Stainless Steel Liquid Preparation Tank With Agitator

3. Hygienic Design for Pharmaceutical and Biochemical Processing

Hygienic design is one of the most important differences between a sanitary preparation tank and a general industrial mixing vessel. A sanitary tank must minimize areas where product residue, cleaning fluid, or microorganisms could accumulate. It should also allow operators to inspect and clean the internal surfaces efficiently.

The use of SUS304 or SUS316L stainless steel on wetted surfaces supports these objectives. Stainless steel is mechanically robust and can withstand repeated exposure to water, process liquids, and many commonly used cleaning solutions. Its non-porous surface can be polished to a finish appropriate for the intended process, reducing the likelihood of material retention and simplifying cleaning validation activities.

Quick clamp connections provide another hygiene and maintenance advantage. Compared with permanently welded or difficult-to-access connections, sanitary clamp fittings can be disassembled with less effort. This enables inspection of gaskets, valves, and connection points and can reduce the time required for maintenance or line changeover. The specific connection standard, gasket material, and surface finish should be selected according to the product, cleaning agents, temperature, and regulatory expectations.

The shaft seal is also important in a sanitary system. A leaking seal can create product loss, contamination concerns, workplace hazards, and unscheduled downtime. The sanitary mechanical seal supplied with the agitator is intended to maintain controlled separation between the rotating shaft and the vessel environment. Seal selection should consider pressure, temperature, shaft speed, fluid viscosity, abrasiveness, chemical compatibility, and cleaning conditions.

For pharmaceutical applications, the tank may be integrated with validated cleaning and sterilization procedures. Depending on the process, these may include manual cleaning, clean-in-place circulation, hot-water treatment, steam-related arrangements, or chemical sanitization. The tank configuration should be reviewed as a complete system rather than as an isolated vessel. Spray coverage, drainability, valve orientation, instrument placement, dead-leg control, and piping slope all influence cleaning effectiveness.

In biochemical operations, the tank may serve as a preparation vessel upstream of fermentation or cell-culture production. It can be used to prepare media, buffer solutions, nutrient solutions, cleaning solutions, or process additives. In these cases, reliable mixing and temperature control are important for dissolving powders, distributing components, and maintaining repeatable batch conditions.

3.1 Material Selection

SUS304 is widely used for general sanitary processing duties where the chemical environment is moderate. SUS316L may be preferable when chloride exposure, acidic ingredients, pharmaceutical formulations, or aggressive cleaning conditions create a higher corrosion risk. The final material decision should account for the complete process life cycle, not only the initial liquid formulation.

Other material details may include the grade of external surfaces, support structures, jackets, internal components, impeller construction, shaft material, gaskets, and valves. A qualified equipment supplier should review these requirements during technical clarification to avoid incompatibility between the vessel and auxiliary components.

3.2 Surface Finish and Cleanability

A smoother internal surface generally helps reduce product retention and supports easier cleaning. The appropriate finish depends on the product and the applicable process standard. Highly viscous materials, powders, proteins, botanical extracts, and sticky formulations may require more attention to surface condition and drainability than low-viscosity liquids.

The internal geometry should also be considered. Tank bottoms, outlet positions, agitator clearances, baffles, probes, and nozzles influence how completely the tank can be drained and cleaned. Customized design allows these features to be aligned with the process instead of forcing the user to adapt production methods to an unsuitable standard vessel.

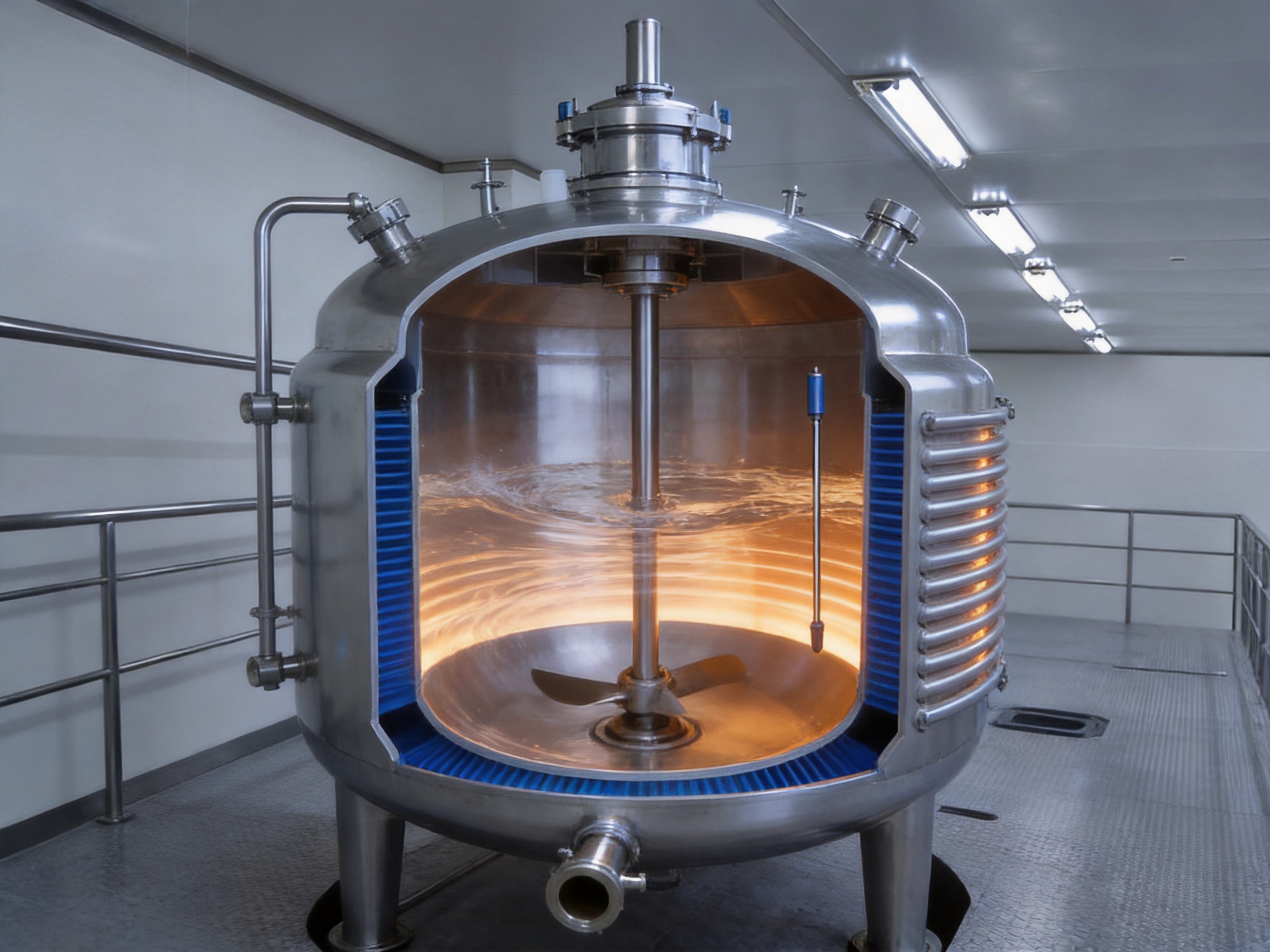

4. Agitation Performance and Process Flexibility

Agitation is central to the performance of a liquid preparation tank. The agitator must create sufficient circulation to blend the contents without causing excessive foaming, unnecessary shear, air entrainment, or mechanical stress. Different products require different flow patterns, and the impeller type, diameter, shaft length, speed range, motor power, and tank geometry must work together.

For low-viscosity liquids, a relatively moderate level of agitation may be enough to achieve uniform concentration and temperature. Suspensions may require continuous circulation to keep particles distributed. More viscous formulations may require higher torque, larger impellers, or a different mixing strategy. Heat-sensitive products may benefit from gentle movement that prevents localized overheating while limiting the time spent at elevated temperature.

The availability of variable-frequency speed regulation is a major advantage over fixed-speed mixing equipment. Operators can begin a batch at a low speed to prevent splashing, gradually increase speed as ingredients are added, and reduce the speed during holding or thermal preservation. This also allows the same tank to support multiple recipes or product families without requiring a separate agitator for every application.

The listed technical range of 0–720 rpm represents a broad adjustment capability. The actual usable speed for a specific tank depends on the selected motor, reducer, impeller, liquid properties, fill level, and mechanical design. The process engineer should define the required mixing objective, such as blending time, suspension quality, dissolution rate, or temperature uniformity, before the agitator is finalized.

4.1 Mechanical Seal and Drive Reliability

A process agitator transfers torque through a rotating shaft that enters the vessel. This penetration is a potential leakage point, making mechanical seal quality important for hygienic operation and equipment reliability. The imported sanitary mechanical seal used in the preparation tank is selected to support controlled shaft operation and reduce medium leakage.

The drive system can use a SEW reducer, a well-known industrial transmission component. A suitable reducer helps match motor speed and torque to the mixing duty. Stable torque transmission can support consistent agitation, reduce mechanical shock, and improve operational life when the vessel is used for repeated batch cycles.

Drive selection should be based on the most demanding operating condition rather than the average liquid condition. Important factors include maximum viscosity, density, solids content, starting torque, operating temperature, batch volume, acceleration time, and the possibility of material settling during downtime. The motor and reducer should also be evaluated for the required duty cycle and environmental conditions.

5. Heating, Thermal Preservation, and Temperature Management

Liquid preparation frequently involves heating. Ingredients may dissolve more quickly at an elevated temperature, waxes or fats may need to be liquefied, viscosity may need to be reduced, or the product may require thermal preservation for a defined period. A preparation tank can be configured to support these duties through a heating jacket or another appropriate heat-transfer arrangement.

Heat transfer must be controlled carefully. An unevenly heated vessel can create hot spots near the heat-transfer surface while the central liquid remains cooler. Agitation helps distribute thermal energy throughout the batch and promotes a more uniform temperature profile. Temperature measurement points should be positioned to provide useful process information and should be selected according to the vessel geometry and mixing pattern.

The stated working temperature for the standard models is up to 100°C. The final thermal design must consider the heating medium, operating pressure, heat-transfer area, insulation, vessel material, gasket selection, thermal expansion, and temperature-control system. For products that are sensitive to overheating, the control strategy should include appropriate monitoring and operator safeguards.

Thermal preservation is not identical to sterilization, and the tank specification should not be interpreted as a universal sterilization guarantee. Whether a process achieves preservation, pasteurization, sanitization, or sterilization depends on time, temperature, product characteristics, microbiological requirements, equipment configuration, and validated operating procedures. The vessel can serve as part of such a process when designed and qualified for the intended duty.

Insulation and external cladding may be added to reduce heat loss, protect operators from hot surfaces, and improve temperature stability. In colder environments, insulation can also reduce energy consumption and shorten the time required to reach the target temperature. The proper insulation thickness depends on the process temperature, ambient conditions, heating medium, and energy-management objectives.

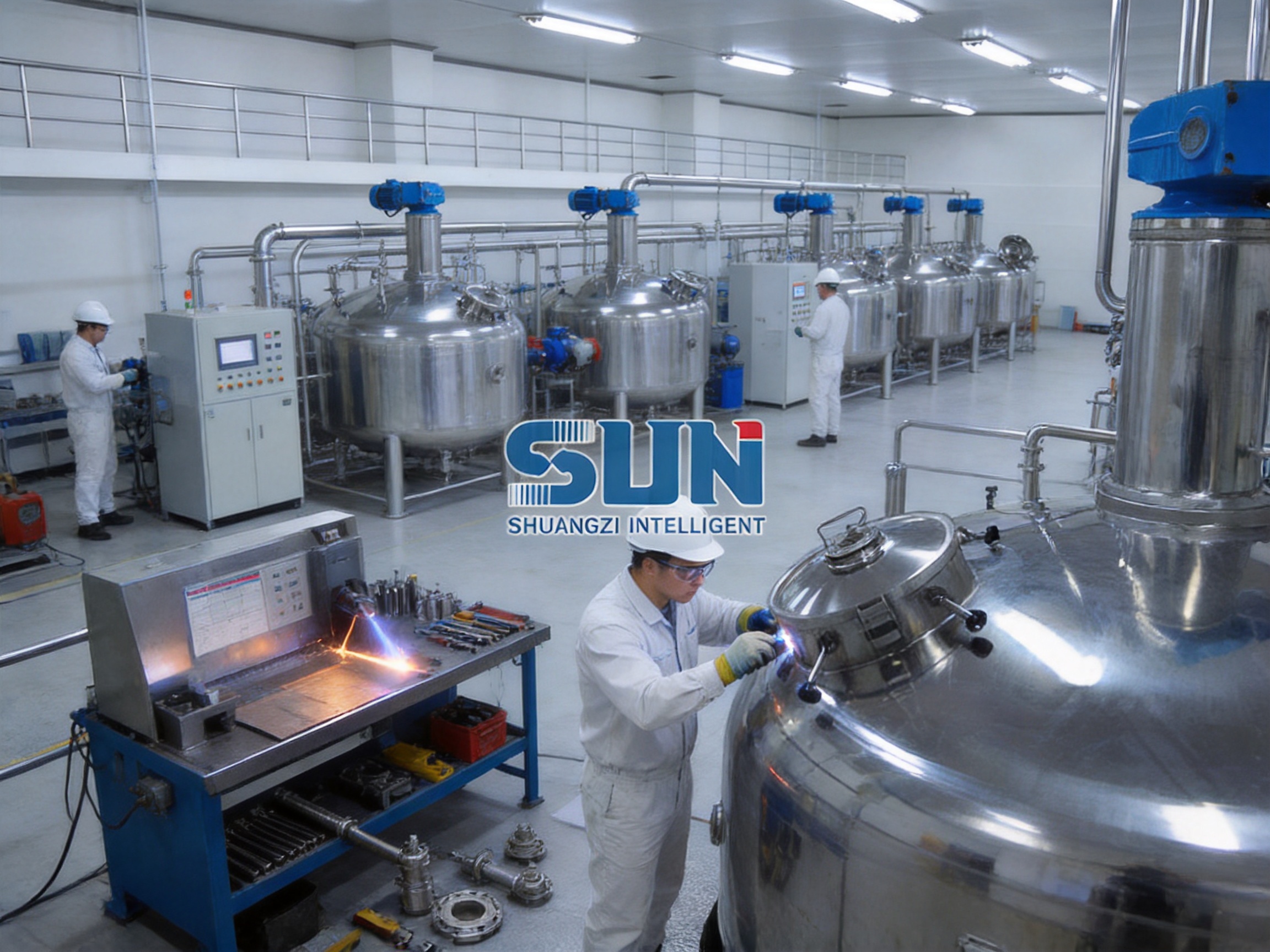

6. Pressure-Bearing Construction and Manufacturing Control

Pressure-bearing vessels require disciplined engineering and manufacturing controls. The product description states that pressure-bearing vessels are fabricated, inspected, and hydrostatically tested in accordance with specifications for welded steel pressure vessels. This approach establishes a structured basis for material preparation, welding, inspection, pressure testing, and documentation.

Manufacturing begins with technical review. The supplier evaluates the required volume, working pressure, working temperature, fluid properties, agitation duty, nozzle arrangement, support method, installation space, and available utilities. This review is important because the vessel cannot be separated from the production process. A tank that fits the nominal capacity but has unsuitable access, discharge height, or mixing performance may create operational problems after installation.

Material preparation is followed by cutting, forming, fit-up, welding, finishing, and assembly. Stainless steel fabrication requires careful control to prevent contamination from carbon steel tools, excessive heat input, distortion, and surface damage. Weld areas must be treated appropriately to restore corrosion resistance and support hygienic cleaning.

Welding quality affects both pressure integrity and sanitary performance. Welds should be properly aligned and finished, with attention to penetration, smoothness, discontinuities, and accessibility. The exact inspection methods depend on the vessel design and applicable requirements, but may include visual inspection, dimensional checks, pressure testing, and other non-destructive examination methods where specified.

Hydrostatic testing provides a practical way to verify pressure integrity under controlled conditions. Test procedures should define the test medium, pressure, holding time, inspection criteria, and safety precautions. After testing, the vessel should be drained, dried, cleaned, and prepared for the next stage of inspection or delivery.

6.1 Advanced Fabrication Equipment

Zhejiang Shuangzi Intelligent Equipment Co., Ltd. has introduced advanced welding and finishing equipment, including plasma argon arc welding machines, plasma cutting machines, and CAM CNC machining centers. These capabilities support more consistent fabrication and enable the company to manage complex vessel components and custom configurations.

Plasma cutting can produce accurate profiles for stainless steel components while supporting efficient preparation of shells, plates, and openings. CNC machining can improve dimensional consistency for flanges, support components, connection parts, and other precision elements. Plasma argon arc welding is suitable for stainless steel fabrication where heat control, weld appearance, and protection from atmospheric contamination are important.

The value of modern equipment is greatest when combined with experienced process control. Automated or semi-automated machinery does not replace engineering judgment. It must be supported by correct drawing review, qualified welding practices, proper material traceability, inspection procedures, and disciplined finishing work.

6.2 Finishing and Assembly

Sanitary equipment finishing may include grinding, polishing, cleaning, passivation-related treatment, surface inspection, and protection during handling. The required finish should be specified according to the process. Product-contact surfaces must be protected from scratches and contamination after finishing because damage during assembly or transportation can undermine earlier manufacturing work.

Assembly includes fitting the agitator, mechanical seal, reducer, motor, nozzles, valves, instruments, supports, and optional thermal components. Alignment is particularly important for the shaft and drive system. Poor alignment can increase vibration, seal wear, bearing loads, and energy consumption. Factory assembly and testing can identify many such problems before the equipment reaches the customer site.

7. Competitive Advantages Over Conventional Preparation Vessels

The market includes simple open mixing tanks, general-purpose stainless steel vessels, fixed-speed blending tanks, and highly customized pharmaceutical process systems. The sanitary preparation tank described here occupies a flexible position between these categories by combining hygienic construction, configurable process features, pressure-capable fabrication, and broad application coverage.

7.1 More Than a Storage Tank

A conventional storage tank may be suitable for holding a finished liquid, but it may not provide the agitation, heat transfer, instrumentation, or sanitary access required for active preparation. The liquid preparation tank is engineered as a process vessel rather than a passive container. It can help operators perform multiple steps in one controlled vessel, reducing transfers and potentially lowering handling losses.

7.2 Wider Capacity Selection

The range from 100 liters to 10,000 liters gives users more opportunities to select equipment that matches their batch size. A small manufacturer can begin with a compact model, while a larger plant can use 2,000-, 5,000-, or 10,000-liter equipment for production-scale operations. This capacity range also supports scale-up studies, provided that mixing geometry, power per volume, heat-transfer conditions, and process results are evaluated rather than assuming that volume alone determines equivalence.

7.3 Adjustable Agitation Instead of Fixed-Speed Operation

Fixed-speed agitators can limit process flexibility. They may be too aggressive for one product and insufficient for another. Variable-frequency speed control enables recipes to use different agitation settings during charging, dissolving, blending, holding, and discharge. This may improve product consistency and reduce unnecessary energy consumption or foaming.

7.4 Sanitary Connections and Improved Maintenance

ISO-standard quick clamp couplings simplify access to the process line. Easier disassembly can reduce maintenance time and support inspection of seals, gaskets, valves, and connection points. It also makes it easier to modify the system when production requirements change.

7.5 Custom Engineering Rather Than One-Size-Fits-All Supply

Some suppliers offer standardized tanks with limited options. The product described here can be tailor-made in dimensions and configuration according to customer process requirements. Customization may address height restrictions, floor loading, platform access, vessel orientation, pipe routing, cleaning systems, agitator selection, control integration, or special nozzle placement.

7.6 Integration into Complete Projects

The company’s engineering model extends beyond individual equipment supply. It provides process technology and automation engineering design, equipment manufacture, matching purchase, installation, system integration, and related project services. This capability can be particularly valuable when a customer is developing a complete pharmaceutical, biochemical, plant extraction, fermentation, food, or environmental process line.

8. Application Areas

8.1 Pharmaceutical Liquid Preparation

Pharmaceutical liquid preparation may involve dissolving active ingredients, excipients, buffers, stabilizers, or other components. The tank can be configured for controlled mixing and heating while maintaining sanitary contact surfaces. Depending on the formulation and regulatory requirements, the vessel may be connected to purified-water systems, filtration units, filling lines, holding vessels, or clean-in-place circuits.

The agitator helps maintain uniformity during ingredient addition and prevents concentration differences between the top and bottom of the vessel. A controlled discharge arrangement can also reduce residue and improve transfer to the next processing step. Product-specific validation remains necessary to confirm mixing time, temperature uniformity, cleaning performance, and batch reproducibility.

8.2 Biochemical and Fermentation Support

In biotechnology, the tank may be used for media preparation, buffer production, nutrient solution preparation, or other upstream and downstream support duties. It can be installed near fermentation equipment as part of a coordinated process system. The tank itself is not automatically a fermenter; the required biological control features, aeration, sampling, instrumentation, and sterilization arrangements must be defined separately when the process involves microbial or cell culture.

For media preparation, agitation and heating can help dissolve nutrient components and achieve a consistent solution before sterilization or transfer. The ability to select stainless steel grades, sanitary seals, clamp connections, and suitable process fittings helps the vessel fit into a controlled bioprocess environment.

8.3 Food and Beverage Processing

Food applications may include syrup preparation, beverage blending, liquid seasoning, dairy-related mixtures, sauces, concentrates, and thermal holding. Food products can vary widely in viscosity, solids content, acidity, and sensitivity to shear. The tank should therefore be configured with an agitator and thermal system suited to the specific recipe.

Stainless steel construction supports frequent cleaning and repeated production cycles. Quick clamp connections can assist with line changeover and maintenance. Where products contain suspended particles or ingredients that settle, continuous agitation may be required during both preparation and transfer.

8.4 Fine Chemical and Specialty Formulations

Fine chemical operations often require careful control over concentration, temperature, mixing intensity, and material compatibility. SUS316L may be selected for more demanding formulations, although the actual chemical resistance must be confirmed for each material and cleaning agent. The pressure and temperature design should also be reviewed if the process produces vapors, uses volatile components, or requires a controlled atmosphere.

8.5 Plant Extraction and Natural Product Processing

The company also works in plant extraction, evaporation, concentration, separation, crystallization, filtration, and related process equipment. In these industries, a preparation tank may be used to dissolve botanical ingredients, prepare extraction liquids, blend intermediate products, or hold materials before filtration and concentration.

Natural products can contain fibers, suspended solids, pigments, oils, and thermally sensitive compounds. The agitator, outlet, filter arrangement, and surface finish should be selected to accommodate these characteristics. A customized vessel can provide a better foundation for integrating preparation with extraction and downstream separation equipment.

9. Manufacturing Strengths of the Supplier

Zhejiang Shuangzi Intelligent Equipment Co., Ltd. was founded in 2007 and operates from a facility in Hangzhou, Zhejiang Province, with a stated floor area of approximately 16,706 square meters and a structure area of approximately 17,800 square meters. The company focuses on biology and medical equipment as well as plant extraction, biological fermentation, pharmaceutical engineering, natural food, energy conservation, and environmental protection applications.

Its business model is centered on EPC and EPCM capabilities. This means the company can participate in more than equipment fabrication. It can contribute to process technology development, automation engineering design, equipment selection, procurement coordination, installation, commissioning, and system integration. For customers building or upgrading production facilities, this broader capability may reduce the need to coordinate several unrelated suppliers.

The company maintains mature product lines that include vacuum low-temperature drying equipment, fermentation systems, evaporation and concentration equipment, extraction equipment, separation and crystallization equipment, filtration equipment, and process containers. This product portfolio is relevant to preparation tank customers because many projects require several connected process stages rather than a single isolated vessel.

The company also reports a pilot production workshop and research and development platform designed to support automation and GMP-related process requirements. Such facilities can assist with pilot trials, process verification, scale-up planning, and equipment configuration. Pilot work is particularly valuable when the final mixing duty is uncertain or when the customer is working with a new formulation, botanical material, or biochemical process.

9.1 Engineering-Led Customization

Customization should begin with process understanding. The company’s engineering approach allows the tank to be considered in relation to upstream material addition, downstream transfer, utilities, control requirements, cleaning procedures, and plant layout. This can help avoid common design problems such as inaccessible valves, insufficient clearance for maintenance, poor drainability, incompatible materials, or inadequate agitator torque.

Engineering documentation may include general arrangement drawings, nozzle schedules, process and instrumentation information, material specifications, equipment data sheets, inspection records, pressure-test records, and operation or maintenance instructions. The exact documentation package should be agreed during the contract and technical clarification stages.

9.2 Process and Automation Integration

Modern preparation systems increasingly depend on automation. Temperature, speed, level, pressure, flow, and valve status may be monitored or controlled through a local panel or plant-wide control system. Variable-frequency drives can regulate agitator speed, while sensors and control logic can help operators repeat approved batch procedures.

Because the company undertakes automation engineering and system integration, the tank can be designed with interfaces for a wider control architecture. This is useful for facilities that require recipe management, electronic records, alarm handling, process interlocks, or coordinated operation with pumps, filters, heat exchangers, and filling systems. The level of automation should be matched to the customer’s process risk, production volume, budget, and validation strategy.

10. Selecting the Correct Tank for a Process

Nominal volume is only the first selection criterion. A process engineer should identify the normal working volume, minimum working volume, maximum batch volume, freeboard requirement, ingredient addition volume, foam behavior, and discharge conditions. The tank should not be operated at an inappropriate fill level simply because its nominal volume appears suitable.

Liquid properties are equally important. Density, viscosity, solids content, particle size, corrosivity, foaming tendency, volatility, and temperature sensitivity affect the vessel and agitator design. A low-viscosity aqueous solution may require a different impeller and motor from a concentrated botanical extract or a suspension containing fine particles.

The required mixing result should be stated clearly. “Mixing” may mean complete dissolution, uniform blending, suspension maintenance, emulsion formation, gas dispersion, heat distribution, or prevention of sedimentation. Each objective has different equipment implications. The customer should provide representative product data and, where possible, laboratory or pilot test results.

Utilities must also be reviewed. Heating may require hot water, steam, thermal oil, or electric systems. Cooling may require chilled water or another cooling medium. Electrical supply, compressed air, purified water, drainage, ventilation, and control-system communication should be checked before installation.

Selection Item	Questions to Confirm	Why It Matters
Batch volume	What are the normal, minimum, and maximum fill levels?	Determines useful working range, freeboard, and agitator performance.
Product properties	What are the viscosity, density, solids content, acidity, and foaming characteristics?	Influences material selection, motor power, impeller type, and seal design.
Temperature	Is heating, cooling, thermal holding, or temperature preservation required?	Determines heat-transfer method, insulation, instrumentation, and control strategy.
Pressure	Will the vessel operate under pressure, vacuum, or atmospheric conditions?	Defines vessel construction, fittings, testing, and safety requirements.
Cleaning	Will cleaning be manual, circulation-based, chemical, hot-water, or automated?	Influences spray devices, drainability, valves, surface finish, and access.
Agitation	Is the process for blending, dissolving, suspending, emulsifying, or heat distribution?	Determines shaft, reducer, impeller, speed range, and motor selection.
Installation	What are the available height, width, floor loading, access, and lifting conditions?	Ensures the vessel can be delivered, installed, operated, and maintained safely.
Automation	Which parameters must be monitored or controlled?	Defines sensors, drives, valves, control panels, and integration interfaces.

11. Installation, Commissioning, and Operation

Correct installation is necessary to obtain the expected performance from a sanitary preparation tank. The foundation or support structure must be suitable for the empty vessel, full operating load, dynamic agitator forces, thermal expansion, and connected piping. The tank should be leveled according to the installation drawings, and access should be provided for inspection, cleaning, motor maintenance, and seal replacement.

Piping should be arranged to avoid unnecessary stress on the tank nozzles. Flexible or appropriately supported connections may be necessary where pumps, valves, or thermal movement could transmit forces to the vessel. Sanitary gaskets and clamps should be installed correctly and tightened according to the relevant procedure.

Before commissioning, operators should verify the rotation direction of the agitator, lubrication condition of the reducer, seal arrangement, instrument calibration, valve operation, emergency stops, and electrical protection. The tank should be cleaned and inspected before the first product batch. A water trial or non-product commissioning test can help confirm mixing, heating, draining, and control functions.

Agitation should normally begin at a suitable low speed before ingredients are introduced, unless the process procedure specifies another sequence. Speed can then be increased gradually while observing vortex formation, foam, vibration, motor load, and product behavior. Operators should not exceed the approved speed, pressure, temperature, or filling limits.

Inspection and maintenance intervals depend on operating conditions. Mechanical seals, gaskets, reducer oil, bearings, impeller attachments, valves, instruments, and weld areas should be included in a preventive-maintenance plan. Any abnormal vibration, leakage, noise, temperature rise, or change in mixing performance should be investigated promptly.

12. Quality, Documentation, and Validation Considerations

Customers in regulated industries often require evidence that the equipment was manufactured according to an agreed specification. A quality package may include material certificates, welding records, inspection results, pressure-test records, dimensional reports, surface-finish information, component certificates, and factory acceptance test documentation.

The specific requirements vary by country, product category, and facility quality system. A supplier should clarify the applicable pressure-vessel rules, electrical standards, hygienic design expectations, documentation language, and acceptance criteria before production begins.

For pharmaceutical and biotechnology applications, equipment qualification may include design qualification, installation qualification, operational qualification, and performance-related testing. The tank supplier can provide technical information and test support, but the final validation strategy belongs to the equipment owner and the responsible quality organization.

Mixing performance should be evaluated using process-relevant criteria. These may include blending time, concentration uniformity, temperature uniformity, dissolution time, suspension quality, and repeatability between batches. Cleaning performance may be examined through visual inspection, rinse testing, swab testing, conductivity, total organic carbon, or other approved methods, depending on the facility’s procedures.

Pressure and temperature ratings must always be treated as engineering limits, not as general operating recommendations. The final equipment nameplate, drawings, and operating instructions should govern actual use. Any change in product, solvent, pressure, temperature, agitation speed, or cleaning chemistry should be reviewed for its impact on equipment suitability.

13. Energy Efficiency and Production Economics

A preparation tank can contribute to production efficiency by combining several operations in one vessel. Dissolution, blending, heating, and holding may be performed without transferring the product between separate containers. Fewer transfers can reduce pumping time, product losses, cleaning points, and contamination opportunities.

Variable-speed agitation may also improve energy use. The agitator does not need to operate at maximum speed throughout the batch. Lower speeds may be sufficient during holding or gentle blending, while higher speeds can be reserved for charging or dispersion steps. This operating flexibility can reduce mechanical wear and avoid unnecessary power consumption.

Thermal efficiency depends on the heat-transfer surface, insulation, temperature control, batch size, and process duration. Insulated surfaces can reduce heat loss and protect operators. Accurate temperature measurement and control can prevent overheating, excessive heating time, or repeated corrective adjustments.

Maintenance economics should be considered along with purchase price. Sanitary clamp connections, accessible components, recognized drive equipment, and replaceable seals can help simplify service. A lower-cost tank with poor accessibility or unsuitable materials may create higher long-term costs through downtime, cleaning difficulty, product loss, or premature replacement.

14. Why Turnkey Capability Matters

Many processing projects fail to achieve their intended performance because individual equipment items are purchased without sufficient attention to system compatibility. A preparation tank must work with pumps, filters, heat exchangers, pipes, instruments, control software, filling equipment, and cleaning systems. Differences in connection sizes, control signals, pressure ratings, or operating sequences can create delays during commissioning.

A turnkey or EPC-oriented supplier can coordinate these interfaces from the beginning. Zhejiang Shuangzi Intelligent Equipment Co., Ltd. provides services that include process and equipment design, matching procurement, installation, line debugging, and system integration. This can be valuable for customers who need a complete production line rather than an isolated tank.

Turnkey support may cover preliminary process discussion, equipment layout, utility planning, fabrication, factory inspection, transportation coordination, on-site installation, commissioning, operator training, and after-sales technical assistance. The scope should be documented clearly, including customer responsibilities, utility requirements, acceptance criteria, and project milestones.

The company’s experience in extraction, fermentation, evaporation, concentration, separation, filtration, drying, and container manufacturing allows it to understand the relationships between preparation and downstream operations. This broader process perspective can help customers select a tank that supports future expansion instead of solving only the immediate equipment requirement.

15. Practical Advantages for Different Users

15.1 Advantages for Pharmaceutical Manufacturers

Pharmaceutical manufacturers benefit from hygienic stainless steel construction, controllable agitation, sanitary seals, clamp connections, and the ability to define a process-specific nozzle and instrument arrangement. The tank can be incorporated into controlled liquid preparation, buffer preparation, intermediate holding, and thermal process operations.

15.2 Advantages for Pilot Plants

Pilot plants need flexibility because recipes and process parameters may change frequently. A configurable 100- or 200-liter tank can support development work, while larger models can be used for scale-up and process confirmation. Variable-frequency agitation makes it easier to study the relationship between speed and product performance.

15.3 Advantages for Food Producers

Food producers require equipment that can withstand frequent cleaning, repeated batch cycles, and changing formulations. Stainless steel wetted surfaces and quick clamp connections can support hygienic operation and changeover. Heating and agitation functions can be combined for products requiring dissolution, blending, or thermal holding.

15.4 Advantages for Engineering Contractors

Engineering contractors can use the tank as a configurable module within a larger plant. The manufacturer’s ability to design and fabricate vessels, integrate automation, and supply related process equipment can simplify project coordination. Technical drawings and interface information can be developed around the project’s piping, electrical, and control requirements.

16. Recommended Project Workflow

A successful preparation tank project generally begins with a process questionnaire. The customer should provide product data, batch size, operating temperature, pressure conditions, mixing objective, cleaning method, materials, utility conditions, and installation constraints. If the product is new, laboratory or pilot observations should be shared where available.

The supplier then develops a preliminary technical proposal. This may identify the vessel volume, material grade, agitator configuration, motor and reducer, mechanical seal, connections, thermal system, instrumentation, control method, support structure, and optional accessories.

After technical clarification, the supplier prepares drawings and a final specification for approval. Changes should be completed before fabrication begins because late modifications to nozzles, supports, or agitator components can affect cost and schedule.

Manufacturing proceeds through material preparation, forming, welding, machining, finishing, assembly, inspection, and testing. Factory acceptance may include dimensional verification, visual inspection, agitator operation, instrument checks, leak checks, and hydrostatic testing as applicable.

Following delivery, installation and commissioning verify the equipment under site conditions. The customer’s process team should confirm cleaning, drainage, mixing, heating, discharge, alarms, interlocks, and operating procedures before introducing commercial product.

17. Frequently Asked Questions

17.1 What industries can use this liquid preparation tank?

The tank is suitable for pharmaceutical, biochemical, food, beverage, fine chemical, plant extraction, and related processing industries. Its final suitability depends on product properties, material compatibility, agitation requirements, temperature, pressure, cleaning procedures, and applicable regulations.

17.2 What capacities are available?

Standard nominal volumes listed for the product are 100, 200, 600, 1,000, 2,000, 3,000, 5,000, and 10,000 liters. Customized capacities and dimensions can be discussed when the standard models do not match the required batch size or installation space.

17.3 Can the tank operate at different stirring speeds?

Yes. Variable-frequency speed regulation can be configured, and the technical table lists a stirring range of 0–720 rpm. The appropriate operating speed depends on the selected agitator, motor, reducer, liquid viscosity, solids content, fill level, and required mixing result.

17.4 What stainless steel materials are used?

The internal wetted surfaces are manufactured from SUS304 or imported SUS316L stainless steel. SUS316L may be selected for more demanding chemical or pharmaceutical environments, subject to a review of the product and cleaning chemistry.

17.5 Is the tank pressure-rated?

The listed standard configuration has a working pressure of 0.25 MPa and is fabricated, inspected, and hydrostatically tested according to specifications for welded steel pressure vessels. The final pressure rating must be confirmed from the approved design documents and nameplate.

17.6 What is the maximum working temperature?

The listed working temperature is up to 100°C for the standard models. The final temperature capability depends on the vessel design, heating system, pressure, material, gaskets, instruments, and process conditions.

17.7 How does the mechanical seal help the process?

The sanitary mechanical seal is installed around the rotating shaft to reduce medium leakage. Proper seal selection and maintenance help protect the product, equipment, and operating environment. Seal suitability must be checked against pressure, temperature, speed, and liquid characteristics.

17.8 Are sanitary pipe connections included?

Pipeline connections use ISO-standard quick clamp couplings in the described configuration. The exact number, size, position, gasket material, and valve arrangement should be defined according to the process design.

17.9 Can the tank include heating or thermal preservation functions?

Yes. The product is designed for liquid mixing, preparation, heating, and thermal preservation processes. The heating or temperature-control arrangement must be specified according to the required heat-transfer medium, temperature profile, pressure, and control accuracy.

17.10 Can the manufacturer provide a complete production line?

The company provides EPC and EPCM-oriented services, including process technology and automation engineering design, equipment manufacture, matching procurement, installation, commissioning, and system integration. It also manufactures or supplies equipment for extraction, fermentation, evaporation, concentration, separation, crystallization, filtration, drying, and related applications.

17.11 What information should be provided for a quotation?

The customer should provide the required working and nominal volume, product name and properties, material requirements, operating temperature and pressure, agitation objective, desired speed range, heating or cooling requirements, cleaning method, connection standards, site dimensions, automation expectations, and delivery location.

17.12 Is the standard dimension table fixed?

No. The table provides reference dimensions for standard models. Final dimensions and configurations may be adjusted according to process requirements, installation limitations, agitator design, thermal components, accessories, support arrangements, and customer specifications.

18. Conclusion

The sanitary stainless steel liquid preparation tank with agitator is a versatile process vessel for industries that require controlled mixing, preparation, heating, and thermal preservation. Its main advantages include a wide capacity range, SUS304 or SUS316L wetted surfaces, sanitary mechanical sealing, adjustable agitation, ISO-standard quick clamp connections, pressure-vessel fabrication and testing, and support for customized process nozzles and accessories.

Compared with basic storage tanks or fixed-speed mixing vessels, it offers greater process flexibility and stronger potential for integration into pharmaceutical, biochemical, food, fine chemical, extraction, and fermentation systems. Variable-frequency speed regulation can support different products and batch stages, while sanitary construction and accessible connections assist cleaning and maintenance.

The manufacturing strength of Zhejiang Shuangzi Intelligent Equipment Co., Ltd. extends beyond vessel fabrication. Founded in 2007, the company combines process engineering, automation design, stainless steel equipment manufacturing, pilot production capability, installation, commissioning, and turnkey project delivery. Its advanced welding, cutting, machining, and finishing equipment supports the production of customized process systems for demanding industries.

For the best result, the tank should be selected as part of a complete process solution. Product characteristics, mixing objectives, thermal requirements, cleaning strategy, pressure conditions, automation level, and installation environment should all be reviewed before final design approval. When these factors are properly matched, the preparation tank can support reliable batch consistency, hygienic operation, efficient maintenance, and long-term production value.

References

1. ASME Boiler and Pressure Vessel Code, Section VIII, Rules for Construction of Pressure Vessels.

2. European Hygienic Engineering and Design Group, Hygienic Design Principles for Food and Pharmaceutical Processing Equipment.

3. Good Manufacturing Practice Guidelines for Pharmaceutical Production Facilities and Equipment.

4. Stainless Steel Fabrication and Welding Practices for Hygienic Process Equipment.

5. Mixing and Agitation Fundamentals for Pharmaceutical, Biochemical, Food, and Chemical Processing.

6. Industrial Sanitary Piping and Clamp Connection Design Practices.

7. Cleaning and Sanitization Principles for Stainless Steel Process Vessels.

8. Pressure Vessel Inspection, Hydrostatic Testing, and Operational Safety Practices.

Product: Sanitary Stainless Steel Liquid Preparation Tank With Agitator
