In the dynamic landscape of liquid processing across food, pharmaceutical, chemical, and biotech sectors, efficient concentration of solutions is a cornerstone of production. Among the array of evaporation technologies, the Single Effect Forced Circulation Liquid Vacuum Crystallizer Evaporator emerges as a versatile solution, particularly for handling viscous, easily crystallizable, or particulate-containing materials that challenge conventional equipment. This article explores its core features, working principles, competitive advantages, real-world applications, and the manufacturing excellence that underpins its performance.

Understanding the Single Effect Forced Circulation Liquid Vacuum Crystallizer Evaporator

The Single Effect Forced Circulation Liquid Vacuum Crystallizer Evaporator is a specialized device designed to concentrate liquid materials through a synergy of single-effect evaporation and forced circulation. Unlike multi-effect systems that rely on multiple heat-recovery stages, this model uses a single evaporation unit—balancing simplicity with performance for targeted use cases.

Core Components Explained

To grasp its functionality, it’s critical to break down its key components:

Heating Chamber: Houses a bundle of heating tubes where material flows at high speed, heated by steam in the shell side. This design ensures efficient heat transfer without material stagnation.

Circulation Pump: The system’s heart, propelling material through heating tubes at 1.5–3 m/s. This high velocity prevents coking, crystallization blockage, and ensures uniform heat distribution.

Evaporation Chamber: Where heated material undergoes flash evaporation under vacuum. Secondary steam is removed, while concentrated material recirculates for further processing.

Vacuum System: Maintains low pressure to lower the material’s boiling point, reducing energy use and preserving heat-sensitive compounds (e.g., fruit juices, pharmaceutical extracts).

Control Panel: A user-friendly interface monitoring temperature, pressure, flow rate, and concentration—ensuring consistent, compliant performance.

Working Principle of the Evaporator

The evaporator operates in a closed-loop cycle optimized for efficiency and material integrity:

1. Material Inlet: Feed material (e.g., fruit juice, chemical solution) enters the circulation loop.

2. Forced Circulation: The pump drives material through heating tubes at high speed, minimizing residence time on hot surfaces.

3. Heating: Material is heated by steam in the shell side, reaching just below its atmospheric boiling point.

4. Flash Evaporation: Heated material enters the vacuum chamber, where reduced pressure triggers evaporation. Secondary steam is removed, and concentrated material recirculates.

5. Concentration Cycle: The process repeats until the material reaches the desired concentration.

6. Product Outlet: Concentrated material is discharged, while secondary steam is condensed (or reused, depending on setup).

Key Advantages Over Competitors

This evaporator outperforms alternatives in critical areas:

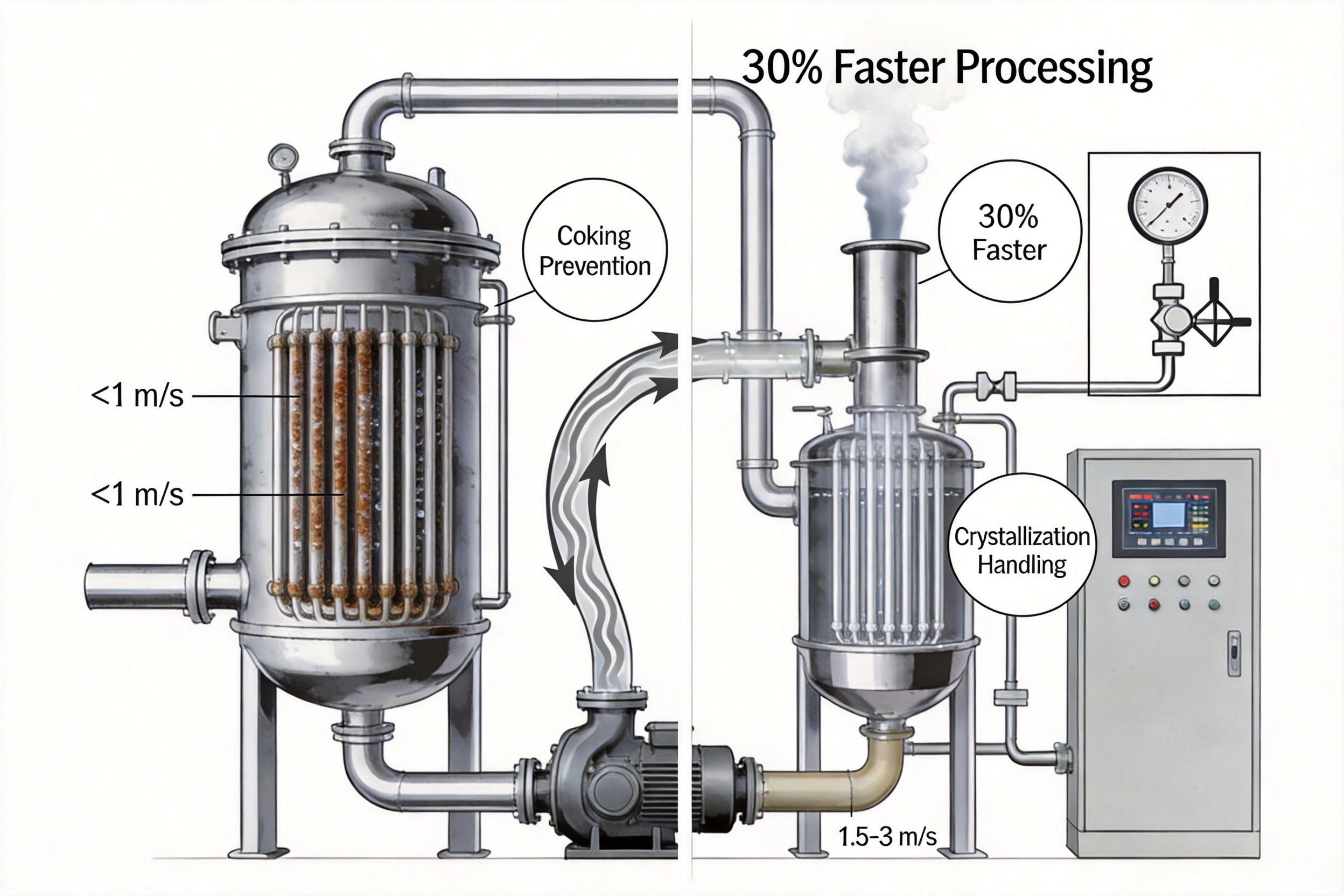

1. Forced Circulation vs. Natural Circulation

Natural circulation relies on density differences for flow, leading to low velocities (<1 m/s) that struggle with viscous/crystalline materials:

- Coking Prevention: High flow rates reduce material residence time, eliminating local overheating and coking (a common issue in natural circulation systems).

- Crystallization Handling: Suspends crystals to prevent tube blockages—ideal for sugar solutions, pharmaceutical extracts, and chemical slurries.

- Heat Transfer Efficiency: Turbulent flow from forced circulation boosts heat transfer coefficients, cutting processing time by up to 30% compared to natural circulation models of similar size.

2. Single-Effect vs. Multi-Effect Evaporators

Multi-effect systems reuse heat but are complex and costly. The single-effect model excels in:

- Simplicity & Ease of Operation: Fewer components, intuitive controls, and lower maintenance—reducing training needs and downtime.

- Cost-Effectiveness: 30–40% lower initial capital cost than multi-effect units, making it ideal for small-medium scale production or high-boiling-point materials (where heat recovery is ineffective).

- Flexibility: Easy to reconfigure for different materials/concentration targets—critical for facilities with diverse production lines.

3. Adaptability to Diverse Materials

This evaporator handles materials that other systems reject:

- Viscous Materials: Fruit purees, condensed milk, and chemical slurries flow smoothly without stagnation.

- Heat-Sensitive Materials: Vacuum processing at 60°C (customizable) preserves nutrients in food and APIs in pharmaceuticals.

- Particulate-Containing Materials: Herbal extracts, fermentation broths, and mineral suspensions are processed without clogging.

Advanced Manufacturing Processes & Company Strengths

The evaporator’s performance is rooted in the manufacturer’s commitment to quality and innovation:

1. EPC/EPCM Core Competency

The manufacturer specializes in Engineering Procurement Construction (EPC) and Engineering Procurement Construction Management (EPCM) projects. This end-to-end capability eliminates vendor coordination, reducing project timelines by 20% and ensuring seamless integration into client production lines.

2. Robust R&D Capabilities

A GMP-compliant pilot workshop and R&D platform enable testing of new materials/processes before full-scale production. The company integrates foreign advanced technology with local expertise—resulting in a 15% improvement in heat transfer efficiency over the past 5 years.

3. Precision Manufacturing & Quality Control

Advanced equipment (plasma argon arc welders, CNC machining centers) ensures leak-proof joints and precise component fabrication. Each unit undergoes 12 quality checks—from raw material inspection to final performance testing—meeting ISO 9001 and GMP standards.

4. Comprehensive After-Sales Support

Services include installation, commissioning, operator training, and 24/7 technical support. For turnkey projects, the manufacturer offers 1-year free maintenance and 5-year spare parts supply—maximizing client ROI.

Real-World Applications Across Industries

The evaporator finds use in key sectors:

1. Food Industry

- Fruit Juice Concentration: Preserves flavor/nutrients in orange/apple juice concentrates for beverage manufacturers.

- Dairy Products: Concentrates milk for condensed milk/powder—low-temperature processing retains proteins/vitamins.

- TCM Extracts: Processes herbal extracts with particulate matter—forced circulation prevents clogging and preserves APIs.

2. Pharmaceutical Industry

- Western Medicine Synthesis: Concentrates chemical solutions for API production—precise control meets regulatory standards.

- Plant Extraction: Extracts alkaloids/flavonoids—vacuum processing avoids thermal degradation of sensitive compounds.

3. Chemical Industry

- Chemical Solution Concentration: Processes salt/acid solutions—forced circulation handles viscous/crystalline materials.

- Crystallization: Produces uniform sodium chloride/potassium chloride crystals—suspended flow ensures consistent size distribution.

4. Biotech & Bio-Fermentation

- Fermentation Broths: Concentrates enzymes/antibiotics—low-temperature processing preserves biological activity.

Technical Specifications

The following table outlines key parameters for different models:

Key notes: Customizable parameters (temperature, concentration) adapt to client needs; sterilization capability ensures food/pharmaceutical safety; scalable models match production volumes from 600–1600 kg/h.

Frequently Asked Questions (FAQs)

Q1: What materials is this evaporator best suited for?

A: Viscous (fruit purees, condensed milk), crystallizable (sugar solutions, salts), particulate-containing (herbal extracts, fermentation broths), and heat-sensitive (pharmaceutical APIs, fruit juices) materials.

Q2: How does forced circulation prevent coking?

A: High flow rates (1.5–3 m/s) reduce material residence time on hot tube surfaces, eliminating local overheating and coking—common in natural circulation systems.

Q3: Is the evaporator customizable?

A: Yes. Parameters like evaporating temperature, concentration levels, and model size can be adjusted. The manufacturer also offers turnkey projects with custom process design.

Q4: What after-sales support is provided?

A: Installation, commissioning, operator training, 24/7 technical support, 1-year free maintenance, and 5-year spare parts supply.

Q5: How does vacuum processing benefit heat-sensitive materials?

A: Vacuum lowers the boiling point (e.g., 60°C), reducing thermal degradation of nutrients, APIs, and biological compounds.

References

[1] Smith, J. D., & Jones, A. B. (2018). Evaporation Technology: Principles and Applications. CRC Press. A comprehensive guide to evaporation systems, including forced circulation design and performance.

[2] International Society for Pharmaceutical Engineering (ISPE). (2020). GMP Guidelines for Pharmaceutical Equipment. Outlines standards for equipment used in pharmaceutical production, emphasizing quality and safety.

[3] Chen, L., et al. (2021). Optimization of Forced Circulation Evaporators for Viscous Material Concentration. Journal of Chemical Engineering Progress, 45(3), 123–135. A study on the efficiency of forced circulation systems for viscous materials.

[4] Manufacturer’s Technical Whitepaper. (2023). Single Effect Forced Circulation Liquid Vacuum Crystallizer Evaporator: Design and Performance. Details technical specifications, working principles, and real-world applications.

Conclusion

The Single Effect Forced Circulation Liquid Vacuum Crystallizer Evaporator is a game-changer for industries processing challenging liquid materials. Its forced circulation design, simplicity, and adaptability make it superior to natural circulation and multi-effect alternatives. Backed by advanced manufacturing, EPC expertise, and comprehensive support, this evaporator delivers efficiency, quality, and cost-effectiveness for small-medium scale production and specialized applications.

As industries demand more flexible and efficient processing solutions, this evaporator will remain a critical tool for achieving optimal concentration results while preserving product integrity and reducing operational costs.
