Dynamic axial compression columns are engineered separation systems designed to improve the packing, operation, and reproducibility of preparative chromatography processes. By using controlled piston movement rather than relying solely on fixed springs or manual packing methods, these columns maintain a stable bed structure and support consistent chromatographic performance across a wide range of production scales. They are suitable for demanding applications in plant extraction, bio-fermentation, pharmaceutical synthesis, natural products, food processing, and other industries requiring reliable separation and purification.

The dynamic axial compression column described in this article uses hydraulic power to control column loading, pressure maintenance, and unloading. A specially designed sealing structure around the piston allows the piston to move smoothly along the internal wall of the column tube while preserving a high level of sealing. This combination of controlled mechanical movement, hydraulic pressure stability, precision-machined surfaces, and carefully selected internal components provides a strong foundation for repeatable industrial chromatography.

Available column diameters cover a broad range, from approximately 50 mm to 1,000 mm and related configurations. This range enables users to select equipment for laboratory development, pilot production, scale-up studies, and commercial manufacturing. Although the physical scale changes, the operating concept remains consistent: the chromatographic bed is compressed and maintained under controlled conditions so that the separation effect can remain comparable to that of a well-packed analytical column.

The system is manufactured by Zhejiang Shuangzi Intelligent Equipment Co., Ltd., a process equipment enterprise specializing in extraction, fermentation, pharmaceutical engineering, natural food, environmental protection, automation, and turnkey project implementation. Its capabilities extend beyond the production of an individual separation column. The company can support process design, equipment selection, system integration, installation, commissioning, and production-line development.

This article explains the working principle, construction, advantages, manufacturing strengths, configuration options, applications, operation considerations, and selection criteria of dynamic axial compression columns.

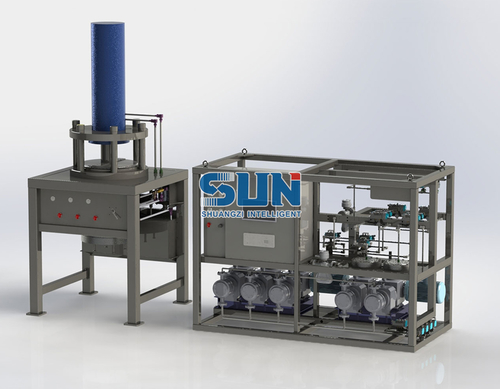

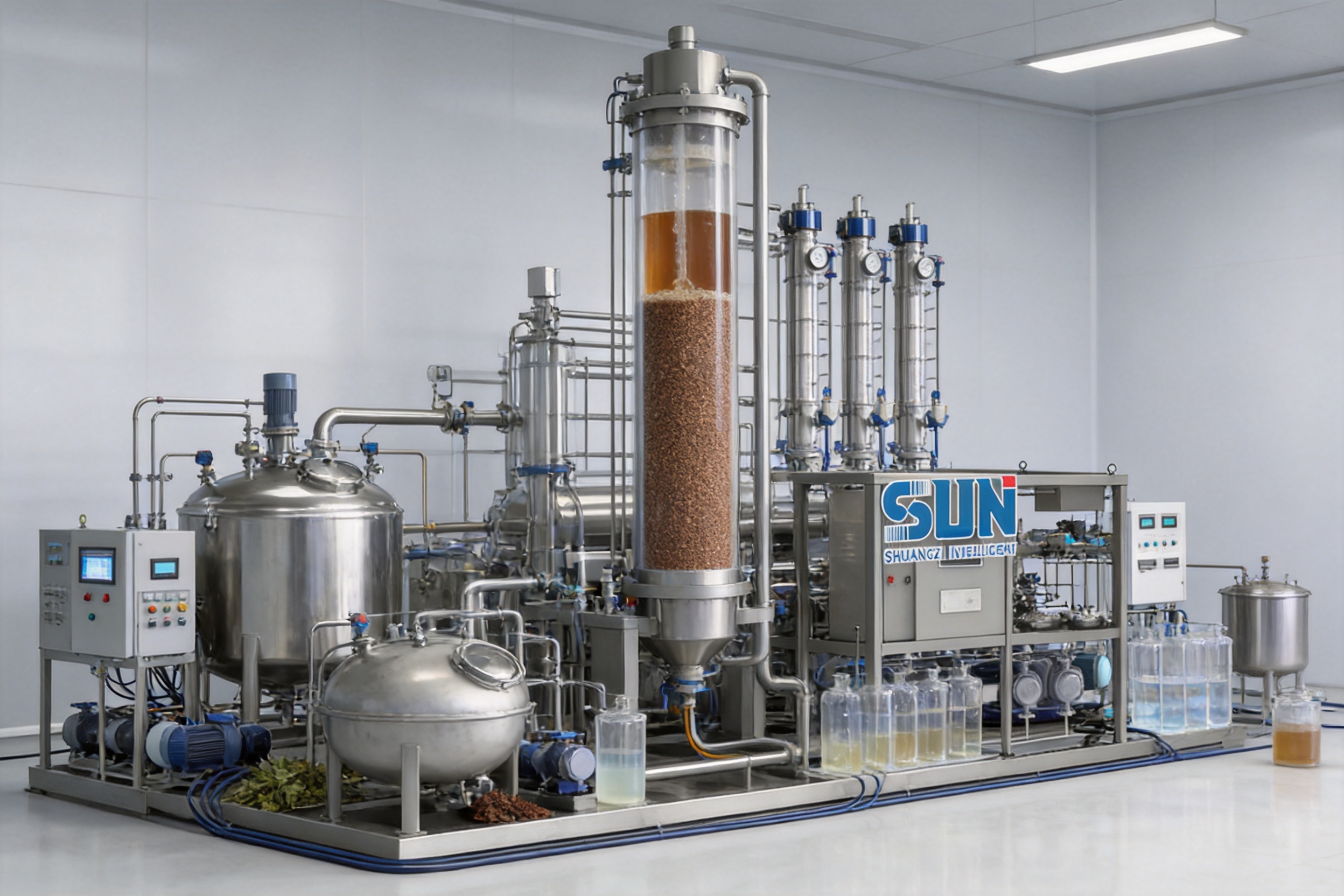

Axial Compression Column

1. The Role of Axial Compression in Preparative Chromatography

Chromatography depends heavily on the quality and stability of the stationary-phase bed. When particles are distributed unevenly, when voids form, or when the bed shifts during operation, the liquid phase may travel through preferential channels. Channeling reduces contact between the feed and the stationary phase, weakens resolution, increases solvent consumption, and can make production results difficult to reproduce.

Axial compression addresses these problems by applying pressure along the vertical axis of the column. A movable piston compresses the packing material into a dense and uniform bed. During operation, the piston can also compensate for changes in bed volume or maintain the required pressure. This is particularly important for industrial-scale columns, where the quantity of stationary phase is large and small packing defects can have a substantial effect on product quality.

Traditional systems may use springs or other passive mechanisms to maintain bed compression. These methods can be effective in selected applications, but their pressure response may change as the spring moves, ages, or experiences variable loading. A hydraulic system provides a more controlled alternative. Hydraulic pressure can be adjusted, monitored, and maintained with greater uniformity, allowing the operator to manage the compression force according to the requirements of the separation process.

The dynamic design also supports loading and unloading. The piston does not function only as a static lid. Its movement can be coordinated with the introduction of packing material, the application of compression, and the removal of the used bed. This improves operational flexibility and may reduce the time and labor required for column preparation and cleaning.

1.1 Packing Quality and Bed Stability

A uniform bed is one of the most important factors in preparative chromatography. If packing density differs from one area to another, liquid distribution becomes uneven. The resulting chromatographic bands may broaden, overlap, or elute at inconsistent times. A dynamic axial compression column helps minimize these risks by applying pressure evenly through the piston surface.

The compression process can be adjusted to suit different stationary-phase materials. Resins, silica-based media, polymeric adsorbents, and other particles may have different compressibility and settling characteristics. A controllable hydraulic system gives the user more flexibility than a fixed mechanical arrangement, particularly when the process is being transferred from laboratory scale to pilot or production scale.

Bed stability is also important during repeated production cycles. Vibration, changes in flow rate, solvent composition, and pressure fluctuations can affect a poorly secured bed. By maintaining axial force, the column is better able to preserve its structure throughout a run. This supports consistent retention behavior and helps reduce batch-to-batch variation.

1.2 Relationship Between Compression and Separation Performance

Compression does not replace process development, appropriate resin selection, or proper flow distribution. However, it provides the mechanical conditions required for those process decisions to deliver their intended results. A well-selected stationary phase can perform poorly if the bed is not packed uniformly. Conversely, a stable bed allows the separation medium to operate closer to its designed capacity and selectivity.

The product description indicates that the column can maintain a separation effect equivalent to that of an analytical column when properly filled and operated. In practical terms, this means that the system is intended to preserve important chromatographic characteristics during scale-up, including bed uniformity, flow distribution, pressure stability, and separation reproducibility.

2. Working Principle of the Dynamic Hydraulic System

The dynamic axial compression column uses a hydraulic power system to control piston movement. The hydraulic cylinder generates the force necessary to move the piston, apply compression to the packing material, and maintain the desired column pressure. Compared with a spring-powered design, hydraulic operation offers a more direct method of controlling the applied force.

During loading, packing material is introduced into the column tube. The piston can be positioned to provide sufficient internal space for loading and then moved gradually to compress the bed. The rate and extent of movement can be controlled according to the properties of the stationary phase and the desired packing density.

After the bed has been compressed, the hydraulic system maintains the piston position or pressure. This prevents the packing material from expanding excessively during the separation cycle. If the bed settles or its volume changes, the piston can be adjusted to maintain contact and reduce the possibility of void formation.

During unloading, the piston can be retracted or moved in a controlled direction to assist with removal of the used packing material. This design is especially valuable for large columns, where manual removal would require considerable labor and may expose operators to unnecessary handling risks.

2.1 Hydraulic Stability

Hydraulic actuation is useful because pressure can be transmitted smoothly and evenly. Mechanical springs generate force according to their compression state, while a hydraulic cylinder can be connected to a pressure-holding system that maintains the selected operating condition. This helps reduce sudden changes in compression force and supports more predictable bed behavior.

The hydraulic cylinder used in the equipment is designed and manufactured by Great Wall Hydraulics, identified in the supplied product information as one of the leading suppliers in China. The use of a specialized hydraulic component supplier supports the reliability of the actuation system and contributes to the overall durability of the column.

Hydraulic systems also allow the equipment to be adapted to different column sizes. A small column and a large production column require very different piston forces. By selecting suitable hydraulic components and pressure-control parameters, the same operating concept can be applied across multiple models.

2.2 Sealing During Piston Movement

Sealing is a critical engineering requirement in any pressurized chromatography column. The piston must move along the internal wall of the column tube, but the gap between the piston and the tube must remain sealed. If the seal allows leakage, the system may lose pressure, contaminate the process area, or permit liquid to bypass the packed bed.

The dynamic axial compression column uses a specially designed sealing structure around the piston. This structure is intended to allow smooth sliding while retaining a high degree of sealing. The design must accommodate pressure, movement, cleaning requirements, chemical exposure, and repeated operating cycles.

The internal surface of the column tube is processed by truss grinding. This finishing method is used to improve surface quality and reduce the risk of premature wear on the high-pressure sealing ring. A smoother and more consistent surface can support longer seal life, lower friction, and more reliable piston movement.

Seal performance depends on the process conditions, including pressure, temperature, solvent compatibility, cleaning chemicals, and operating frequency. Users should confirm material compatibility and maintenance requirements before finalizing a configuration for a specific process.

3. Construction and Main Components

A dynamic axial compression column is more than a simple tube fitted with a piston. It is an integrated separation machine composed of a column body, piston assembly, sealing system, hydraulic actuation unit, pressure-holding system, sieve plates, liquid-distribution components, connections, and control elements. Each component contributes to the quality and repeatability of the final separation.

3.1 Column Tube

The column tube forms the primary pressure boundary and contains the stationary phase. The supplied specifications identify SS316L as the material used for the column system. Stainless steel 316L is widely used in pharmaceutical, food, biotechnology, and chemical processing because it offers good corrosion resistance and is suitable for hygienic equipment construction when properly finished.

The column tube must withstand internal pressure, repeated cleaning, mechanical loads from the piston, and the chemical environment of the process. Its internal geometry should be sufficiently uniform to support consistent seal movement and even flow distribution.

Different column diameters are available for different processing requirements. Smaller sizes can be used for process development and pilot work, while larger diameters are intended for high-throughput preparative operations. The broad size range allows users to increase capacity without changing the basic compression principle.

3.2 Piston Assembly

The piston is the active compression element. It applies force to the stationary phase and maintains the bed under pressure during operation. The piston must be rigid enough to resist deformation and accurately fitted to the column tube. Its sealing arrangement must allow movement without excessive friction or leakage.

Because the piston is hydraulically operated, its movement can be coordinated with the loading and unloading procedure. The operator can use the piston position to manage the available internal volume, regulate bed compression, and support the recovery of used packing material.

3.3 Sieve Plates

Sieve plates retain the stationary phase while allowing the mobile phase to pass through. They must provide sufficient mechanical support, uniform liquid distribution, and effective sealing. The supplied product information states that imported sieve plates are selected and that import certificates can be provided. This supports traceability and gives users documentation for quality-management and procurement records.

For large preparative columns, the sieve plate is designed to be easy to load and unload. This reduces the time needed for maintenance, resin replacement, inspection, and cleaning. At the same time, the plate must preserve good sealing performance and compulsory distribution of the process liquid.

Compulsory distribution is particularly important in large-diameter equipment. As column diameter increases, the liquid must be spread evenly across a larger cross-sectional area. A well-designed distribution structure helps prevent edge effects, dead zones, and localized high-velocity channels.

3.4 Pressure-Holding System

The pressure-holding system supports stable operation after the desired compression level has been reached. It works with the hydraulic cylinder to prevent uncontrolled piston movement. Maintaining the selected pressure is important because changes in bed compression can alter flow resistance, residence time, and separation performance.

The pressure system should be operated within the specified limits for each model. Pressure limits are not interchangeable between column sizes. The column diameter, mechanical design, sieve plate structure, seal configuration, and hydraulic system all influence the allowable working pressure.

3.5 Process Connections and Instrumentation

Although the supplied information focuses on the column and compression mechanism, a complete installation may include process piping, valves, pumps, pressure instruments, detectors, control panels, and automation interfaces. These components can be matched to the user's process and integrated into a broader separation line.

The listed detector options include 200–400 nm or 190–700 nm ranges, with optional single-wavelength, dual-wavelength, or four-wavelength configurations. These detector choices can support monitoring of ultraviolet-absorbing compounds during chromatographic processing. The suitable detector arrangement depends on the target compounds, solvent system, concentration range, and required monitoring strategy.

4. Product Models and Technical Range

The equipment is available in several model groups. The model designation corresponds broadly to the column diameter and associated flow capacity. Users should evaluate the required bed volume, mobile-phase flow rate, pressure, viscosity, solvent composition, and production cycle time before choosing a model.

Model	SUN 150/200	SUN 300	SUN 400–500	SUN 600	SUN 800	SUN 1000/1100	SUN 1200
Infusion pump maximum flow, L/h	200	300	500	1,200	2,000	3,000	5,000
Column designation	DAC150–200	DAC150–200	DAC400–500	DAC600	DAC800	DAC1000–1100	DAC1200
Working pressure, MPa	≤42	≤25	≤20	≤15	≤15	≤10	≤10
Primary material	SS316L
Additional working pressure information	100 bar configuration listed				70 bar configuration listed
Detector options	200–400 nm or 190–700 nm; single, dual, or four wavelengths available as options

The table provides the principal information supplied for the model range. Actual flow performance depends on the stationary phase, bed height, mobile-phase viscosity, temperature, pressure drop, tubing arrangement, and process objective. Maximum pump flow should not be interpreted as a guaranteed operating flow for every resin or solvent.

The listed pressure values also require careful interpretation. A column may be designed for a particular maximum pressure, while the practical operating pressure for a process is lower because of resin characteristics, flow resistance, seal limitations, or product sensitivity. Process engineers should confirm the complete pressure envelope during design and commissioning.

4.1 Scale-Up from Development to Production

A major benefit of a broad model family is the ability to develop a process at a smaller scale and transfer it to a larger column. The same fundamental packing and compression mechanism can be used during development, pilot validation, and commercial operation. This helps reduce the number of mechanical variables introduced during scale-up.

Scale-up still requires engineering analysis. Bed height, linear velocity, residence time, loading capacity, pressure drop, gradient conditions, and cleaning procedures should be evaluated. The objective is not simply to increase diameter. It is to maintain the process conditions that determine separation quality while providing the required production capacity.

Hydraulic axial compression supports this transition by offering controlled bed formation at multiple scales. The operator can apply a consistent approach to loading and pressure maintenance, while the larger column provides increased throughput and working volume.

5. Advantages Over Conventional and Competing Designs

The dynamic axial compression column offers several advantages compared with conventional spring-powered columns, manually packed columns, and less integrated separation equipment. These advantages relate to pressure control, bed stability, operating flexibility, component quality, and suitability for industrial scale.

5.1 More Consistent Compression Than Passive Spring Systems

A spring-powered column generates compression through the mechanical characteristics of the spring. As the spring position changes, the applied force can change. Spring fatigue, temperature variation, mechanical wear, or differences in loading can also affect the compression response.

The hydraulic system provides a more active method of controlling pressure. The pressure-holding system can maintain the selected condition and allow adjustment when process requirements change. This is particularly useful when handling stationary phases with different settling or compressibility properties.

The advantage is not merely higher pressure. In many chromatographic processes, excessive pressure can damage the resin or create unnecessary energy consumption. The important benefit is controlled and stable pressure applied at the level required by the process.

5.2 Improved Reproducibility

Reproducibility is a central requirement in pharmaceutical, biological, food, and natural-product processing. A process that produces a different chromatogram in every cycle is difficult to validate and difficult to operate economically.

By improving bed uniformity and reducing movement during operation, dynamic compression can help stabilize retention behavior and elution profiles. Consistent piston positioning and hydraulic pressure also make it easier to repeat established loading procedures. The resulting process data can be more meaningful because mechanical packing variation is reduced.

5.3 Flexible Loading and Unloading

Large stationary-phase beds can be difficult to handle manually. Conventional systems may require extensive disassembly or specialized lifting tools. The dynamic piston supports a more direct loading and unloading method, which can reduce handling time and improve workplace efficiency.

The removable or accessible sieve-plate structure of the large preparation column also contributes to serviceability. Easier access supports resin replacement, inspection, and maintenance without requiring the entire system to be rebuilt.

5.4 Better Suitability for Large-Diameter Columns

As column diameter increases, uniform liquid distribution and bed compression become more challenging. A design that works adequately at laboratory scale may not perform well in a large production vessel. The dynamic axial compression system is intended for diameters extending into the large preparative range, with model options up to approximately 1,000 mm and beyond in the supplied specifications.

The combination of hydraulic compression, designed sieve plates, and compulsory distribution helps address the challenges associated with larger cross-sectional areas. This makes the equipment suitable for production lines where throughput and consistent quality are both important.

5.5 High-Quality Surface Finishing

The use of truss grinding on the column tube improves the surface condition that interacts with the high-pressure sealing ring. A carefully finished inner wall reduces roughness-related wear and supports smoother piston travel. Compared with a roughly finished or inconsistently machined surface, this can contribute to longer seal service life and more dependable pressure retention.

Surface finishing is also relevant to cleaning. Smooth internal surfaces are generally easier to rinse and inspect, and they reduce locations where product residues or microorganisms may accumulate. The final hygienic suitability still depends on the complete design, weld quality, drainage, cleaning method, and validation requirements.

5.6 Traceable Internal Components

The use of selected imported sieve plates, together with the ability to provide import certificates, gives users additional documentation for component traceability. This can be valuable in regulated industries where material records and supplier documentation form part of the equipment qualification package.

Traceability does not replace testing or qualification, but it strengthens procurement control and helps the end user maintain a clear record of critical components.

6. Advanced Manufacturing Processes and Engineering Strengths

The performance of a pressure-driven separation column depends on manufacturing accuracy as much as on the design concept. The company’s broader equipment capabilities include advanced welding, cutting, machining, finishing, pilot production, and research-and-development facilities. These capabilities support the production of process equipment for applications where dimensional accuracy, surface quality, and hygienic construction are essential.

6.1 Stainless Steel Fabrication

SS316L fabrication requires appropriate material handling and welding practices. Contamination from carbon steel tools, poor shielding, excessive heat input, or inadequate post-weld finishing can reduce corrosion resistance and create difficult-to-clean surfaces. Specialized stainless-steel fabrication procedures help preserve the material properties required for pharmaceutical, food, and biological applications.

The company reports the use of plasma argon arc welding machines and plasma cutting equipment. These technologies can support accurate fabrication of stainless-steel components and help produce clean, controlled welds when operated by qualified personnel.

6.2 Precision Machining

The piston, sealing interfaces, sieve-plate supports, ports, and other pressure-related parts require accurate machining. Dimensional deviations can affect seal contact, pressure retention, alignment, and flow distribution. The company has introduced CAM CNC machining centers, which support repeatable production of complex or close-tolerance components.

Computer-aided manufacturing allows machining data to be managed more consistently across different equipment models. It also supports repeatability when a customer requires multiple columns with similar dimensions or replacement components over the service life of a system.

6.3 Internal Surface Finishing

Internal finishing is one of the most important manufacturing steps for a dynamic piston column. The piston must move without damaging the seal, while the internal wall must be suitable for cleaning and process contact. Truss grinding and related finishing operations improve the condition of the surface and support the service life of the high-pressure sealing ring.

The finishing process should be controlled for uniformity, dimensional accuracy, and surface condition. Inspection may include visual examination, dimensional measurement, roughness evaluation, and verification of critical sealing areas.

6.4 Pilot Workshop and Research Platform

The company operates a pilot production workshop and research-and-development platform designed around automation and GMP-related requirements. This is significant because separation equipment must often be tested under process conditions before it is installed in a commercial production line.

Pilot capabilities allow users and engineers to evaluate resin selection, bed height, flow rate, pressure, cleaning procedures, detector response, and product recovery. The resulting data can guide the design of a larger system and reduce the risk of expensive changes after installation.

A pilot workshop is also useful for new products and process technologies. Plant extracts, fermentation broths, pharmaceutical intermediates, and food ingredients may behave differently during filtration and chromatography. Small-scale testing can reveal viscosity, fouling, adsorption, and elution challenges before full-scale equipment is manufactured.

6.5 Integrated Engineering Capability

The supplier’s stated EPC and EPCM capabilities cover process technology, automation engineering, equipment manufacture, purchased-equipment coordination, installation, system integration, and commissioning. This integrated approach can simplify projects in which the column must operate as part of a larger extraction, purification, or production line.

Rather than treating the column as an isolated item, the engineering team can consider upstream clarification, feed tanks, pumps, valves, downstream collection, solvent recovery, cleaning, control systems, and waste handling. This reduces the risk of mismatches between the column and the rest of the plant.

7. Applications in Industrial Processing

7.1 Plant Extraction

Plant extraction processes often produce complex mixtures containing active ingredients, pigments, sugars, oils, proteins, and other compounds. Chromatographic separation can be used to enrich target components, remove impurities, or produce standardized botanical ingredients.

A dynamic axial compression column is suitable for processes where the stationary phase must be packed consistently and operated over repeated production cycles. The hydraulic system helps maintain bed integrity while the detector options can support monitoring of ultraviolet-absorbing compounds during elution.

Applications may include the purification of botanical active ingredients, natural colorants, flavonoid-rich fractions, alkaloids, glycosides, and other extract components. The exact process depends on the feed composition, resin chemistry, solvent system, and product specifications.

7.2 Bio-Fermentation

Fermentation broths can contain cells, proteins, salts, residual nutrients, metabolites, and target biological products. Before chromatography, the feed may require clarification, filtration, concentration, or adjustment of pH and conductivity. Once prepared, the feed can be passed through a suitable stationary phase for capture or polishing.

Dynamic compression helps protect bed structure when the process requires repeated loading and cleaning. The equipment can be integrated with fermentation tanks, filtration systems, buffer preparation, and automated control systems as part of a broader bioprocess line.

Because biological materials can be sensitive to shear, temperature, solvent composition, and residence time, process conditions must be selected carefully. The column itself provides the mechanical platform, while the final process design must be adapted to the biological product.

7.3 Pharmaceutical Synthesis and Purification

Pharmaceutical synthesis may produce reaction mixtures containing intermediates, catalysts, by-products, unreacted materials, and solvent residues. Preparative chromatography can provide a high level of selectivity when crystallization or conventional filtration is insufficient.

The stainless-steel construction, controlled compression, available detector options, and potential for system integration make the column suitable for pharmaceutical purification projects. However, the equipment configuration should be reviewed against the applicable quality, cleaning, documentation, and validation requirements of the facility.

For active pharmaceutical ingredients and intermediates, users may require documented material certificates, surface-finish records, pressure tests, weld inspection, factory acceptance testing, and installation qualification support. These requirements should be defined during the project specification stage.

7.4 Natural Food and Nutraceutical Processing

Natural food ingredients and nutraceutical products increasingly require purification, concentration, and standardization. Chromatography can be used to separate functional compounds, remove undesirable components, or prepare high-value fractions.

The column can be incorporated into a line that includes extraction, clarification, concentration, drying, solvent recovery, and packaging. The use of SS316L and accessible internal components supports hygienic design, while the hydraulic compression system improves the consistency of repeated cycles.

7.5 Research, Pilot Production, and Scale-Up

Research institutions and pilot plants need equipment that can produce meaningful data without requiring a full commercial installation. Smaller models provide a platform for comparing resins, evaluating loading capacity, testing elution conditions, and determining the effect of bed height and flow rate.

Once the process is established, the model range supports a structured path toward larger equipment. This can shorten development time and provide better continuity between laboratory findings and production requirements.

8. Integration into Turnkey Projects

A separation column rarely operates alone. It normally forms one stage in a process sequence that may include raw-material handling, extraction, filtration, concentration, purification, solvent recovery, drying, and final product collection. The company’s turnkey project capability allows the dynamic axial compression column to be incorporated into a complete process solution.

During project development, engineers can define the process flow diagram, equipment list, utility requirements, control philosophy, instrumentation, and installation arrangement. The column can then be specified according to the actual feed and product objectives rather than selected only by nominal diameter.

8.1 Upstream Compatibility

Feed quality has a direct effect on column performance. Suspended solids can block sieve plates or foul the stationary phase. High viscosity can increase pressure drop. Uncontrolled pH or temperature can alter adsorption behavior. Upstream filtration, clarification, and conditioning should therefore be considered part of the column design.

An integrated engineering approach helps ensure that feed tanks, pumps, filters, and transfer lines are appropriately sized. It also allows the process team to identify whether a pre-column filter, guard bed, heat exchanger, or concentration step is required.

8.2 Downstream Compatibility

After separation, product fractions may need to be collected, tested, concentrated, crystallized, dried, or transferred to another purification stage. Detector data can assist with fraction monitoring, while automated valves and control systems can coordinate collection according to time, volume, signal, or process conditions.

Downstream equipment should be designed to handle the expected flow, solvent, temperature, and product concentration. Proper integration reduces the risk that the column becomes a bottleneck in the overall line.

8.3 Automation and Control

Automation can improve the consistency of column preparation and operation. A control system may monitor hydraulic pressure, process pressure, flow rate, detector signal, valve position, and operating time. Recipes can be used to standardize loading, compression, equilibration, washing, elution, regeneration, and unloading sequences.

The appropriate level of automation depends on the project. A pilot unit may require straightforward local controls, while a commercial plant may need data logging, remote monitoring, alarm management, batch records, and communication with a plant-wide supervisory system.

9. Operation, Maintenance, and Safety Considerations

Safe and reliable operation begins with correct installation and commissioning. The column should be placed on a suitable support structure, connected to compatible piping, and tested before product is introduced. Hydraulic connections, pressure instruments, process seals, and detector components should be inspected according to the commissioning plan.

9.1 Loading Procedure

The loading procedure should be developed for the specific stationary phase. Important variables include slurry concentration, loading rate, piston position, compression force, settling time, and final bed height. A controlled procedure reduces the chance of air entrapment, uneven packing, or excessive compression.

Operators should avoid exceeding the pressure limit associated with the selected model. The bed should be observed during compression, and any abnormal pressure rise, leakage, or piston resistance should be investigated before continuing.

9.2 Pressure Monitoring

Pressure should be monitored at relevant points in the system. Column pressure, pump discharge pressure, and hydraulic pressure may provide different information. A rising process pressure can indicate blocked filters, increased viscosity, bed compaction, resin fouling, or flow restrictions downstream.

Pressure alarms and shutdown limits should be established during commissioning. Operators should not treat the maximum rated pressure as a normal operating target. The preferred working range should be determined through process testing.

9.3 Cleaning and Sanitation

Cleaning procedures depend on the stationary phase and process material. Water, buffer, alkaline solutions, acid solutions, alcohols, or other cleaning agents may be used where chemically compatible. The cleaning procedure should address the column tube, piston seal, sieve plates, valves, transfer lines, and collection circuits.

Because the piston and sieve plates are accessible for service, inspection and cleaning can be more convenient than in designs that require extensive disassembly. Nevertheless, all contact surfaces should be verified for cleanliness, and cleaning validation should be performed where required.

9.4 Seal Inspection

The high-pressure sealing ring is a critical wear component. Its service life is influenced by surface finish, pressure, chemical exposure, temperature, piston movement, and maintenance practices. Operators should inspect for leakage, friction changes, visible damage, or abnormal pressure loss.

A preventive-maintenance program should define inspection intervals, replacement criteria, compatible lubricants if applicable, and spare-part requirements. Seal replacement should be performed using approved parts and procedures.

9.5 Hydraulic System Maintenance

The hydraulic system should be inspected for fluid cleanliness, hose condition, connection tightness, pressure stability, and cylinder performance. Hydraulic fluid contamination can damage valves and reduce control accuracy. The supplier’s maintenance recommendations should be followed for filtration, fluid replacement, and pressure testing.

10. Selecting the Appropriate Column

Choosing a column model requires more information than the desired flow rate. The user should define the separation objective, stationary phase, working pressure, bed volume, cycle time, feed properties, cleaning method, and future capacity requirements.

10.1 Key Selection Questions

What is the required production capacity per hour or per batch?

What stationary phase will be used, and what is its recommended compression range?

What is the expected mobile-phase viscosity and solvent composition?

What pressure drop is expected at the required flow rate?

What bed height and bed volume are required for the target separation?

Will the equipment be used for development, pilot production, or commercial manufacturing?

What level of automation, data recording, and detector integration is required?

What cleaning, sanitation, and material documentation standards apply?

Will the column be integrated into an existing process line or supplied as part of a turnkey project?

10.2 Flow Rate and Linear Velocity

Flow rate should be evaluated together with column cross-sectional area. A larger column can process a greater volumetric flow while maintaining a similar linear velocity. If flow is increased without considering bed dimensions, pressure drop and separation performance may change significantly.

The listed infusion pump capacities provide a useful starting point for model comparison. Final sizing should be based on actual process trials and hydraulic calculations. Resin particle size, solvent viscosity, temperature, and bed height all affect the practical operating point.

10.3 Pressure Rating

Pressure rating is another important selection factor. Smaller columns in the model range have higher listed maximum working pressures, while larger columns have lower listed limits. This is a normal engineering relationship because pressure loads and structural requirements increase with vessel size.

The selected column should provide adequate operating margin. A process that operates close to the maximum rating may be more sensitive to feed variation, temperature changes, or fouling. A suitable design should allow stable operation below the maximum allowable pressure.

10.4 Material and Regulatory Requirements

SS316L is widely used for process-contact surfaces, but users should confirm the complete material specification, including seals, gaskets, valves, tubing, sieve plates, and detector flow cells. Compatibility must be checked against all process and cleaning fluids.

For regulated applications, documentation may include material certificates, surface-finish information, weld records, pressure-test reports, calibration certificates, operating manuals, and factory acceptance records. These requirements should be included in the purchase specification.

11. Engineering and Manufacturing Quality Assurance

Quality assurance should cover design, materials, fabrication, machining, assembly, testing, and final documentation. A reliable column is the result of controlled execution at every stage rather than a single inspection at the end of production.

During design, engineers should verify the pressure boundary, piston alignment, seal geometry, sieve-plate support, flow distribution, hydraulic force, and access requirements. During fabrication, material identification and welding controls help protect corrosion resistance and structural integrity.

Machined parts should be checked for dimensional accuracy, surface quality, and fit. The piston and column tube should be evaluated together because the seal depends on their interaction. Sieve plates should be inspected for flatness, pore or opening condition, mechanical strength, and sealing performance.

Assembly should include verification of hydraulic connections, pressure instruments, valves, detector components, and process ports. Pressure testing and functional testing can identify leakage or abnormal piston movement before shipment.

Factory acceptance testing may include dry movement of the piston, hydraulic pressure holding, process-side pressure testing, flow verification, detector signal checks, control-panel testing, and review of documentation. The exact test plan should be agreed upon between the supplier and the customer.

12. Supplier Capability and Project Support

Zhejiang Shuangzi Intelligent Equipment Co., Ltd. was founded in 2007 and operates facilities with a floor area of approximately 16,706 square meters and a structure area of approximately 17,800 square meters, according to the supplied company information. The company focuses on process technology and automation engineering design, equipment manufacture, matching procurement, installation, and system integration.

Its product and project experience covers vacuum low-temperature drying, fermentation systems, evaporation and concentration, extraction, separation, crystallization, filtration, vessels, and related process equipment. This range is relevant to customers who require a dynamic axial compression column as part of a larger manufacturing system.

The company’s engineering model includes EPC and EPCM services. This can provide one point of coordination for process design, equipment production, purchased components, installation, commissioning, and line debugging. For customers with limited internal process-engineering resources, such support can simplify project management.

The pilot workshop and research platform provide a basis for process verification. Users can evaluate a separation concept before committing to a large production system. Pilot work may also support resin screening, solvent optimization, pressure assessment, product recovery studies, and cleaning development.

Manufacturing equipment such as plasma argon arc welding machines, plasma cutting machines, and CAM CNC machining centers supports the production of stainless-steel process equipment. These resources, together with hydraulic-component sourcing and internal finishing capabilities, contribute to the performance of the dynamic axial compression column.

13. Practical Benefits for Different Users

13.1 Benefits for Process Developers

Process developers gain a controllable platform for studying bed compression, flow rate, pressure, and separation performance. The ability to adjust the piston and hydraulic pressure makes it easier to investigate the operating window of different stationary phases.

The detector options support real-time observation of ultraviolet-absorbing compounds. This can help developers compare loading conditions, elution profiles, peak separation, and fraction-collection strategies.

13.2 Benefits for Production Managers

Production managers typically prioritize throughput, repeatability, maintenance time, and operational risk. The dynamic system addresses these priorities through controlled compression, accessible internal components, and model options for different capacities.

The ability to integrate the column into a turnkey line can also reduce coordination between separate equipment suppliers. A unified project approach may improve schedule control and simplify commissioning.

13.3 Benefits for Quality and Validation Teams

Quality teams benefit from traceable components, stainless-steel construction, documented pressure ratings, and the potential for standardized operating procedures. Imported sieve plates with available certificates provide supporting records for critical component control.

Validation requirements will depend on the application, but the column can be specified with documentation and testing appropriate to pharmaceutical, biological, food, or natural-product manufacturing environments.

13.4 Benefits for Maintenance Teams

Maintenance teams benefit from a design that provides access to the sieve plate, piston, sealing ring, hydraulic cylinder, and associated components. Easy loading and unloading can reduce the time required for resin replacement and inspection.

Precision-machined and properly finished surfaces can also reduce wear-related problems. Preventive maintenance remains necessary, but controlled construction and component quality can support a longer and more predictable service life.

14. Frequently Asked Questions

What is a dynamic axial compression column?

A dynamic axial compression column is a preparative chromatography column that uses a hydraulically driven piston to load, compress, maintain, and unload the stationary-phase bed. The piston moves along the internal wall of the column while a specialized sealing structure maintains pressure and limits leakage.

How is it different from a spring-powered axial compression column?

A spring-powered column depends primarily on the mechanical force characteristics of the spring. A dynamic hydraulic column uses a hydraulic cylinder and pressure-holding system, allowing more direct adjustment and maintenance of the compression force. This can provide more stable and uniform pressure during operation.

What materials are used for the column?

The supplied specifications identify SS316L as the primary material. The complete system may also include seals, gaskets, sieve plates, valves, tubing, and detector components made from other materials selected for chemical compatibility and process requirements.

What column diameters are available?

The product range covers multiple sizes, including model groups associated with DAC150–200, DAC400–500, DAC600, DAC800, DAC1000–1100, and DAC1200 configurations. The stated product description also refers to filling diameters from approximately 50 mm to 1,000 mm. Final dimensions should be confirmed for the intended project.

What is the maximum flow rate?

Listed maximum infusion-pump flow rates range from approximately 200 L/h for smaller models to approximately 5,000 L/h for the SUN 1200 model. Actual process flow depends on the stationary phase, mobile phase, pressure drop, bed height, and required separation performance.

What is the maximum working pressure?

The listed maximum working pressure ranges from up to 42 MPa for the SUN 150/200 model to up to 10 MPa for the SUN 1000/1100 and SUN 1200 models. These are model-specific limits. Normal operating pressure should be established below the maximum rating and confirmed through engineering analysis and process testing.

Can the column be used for plant extracts?

Yes. The column is suitable for preparative separation in plant extraction processes, including enrichment, purification, and fractionation of natural products. Feed clarification, resin selection, solvent compatibility, and cleaning procedures must be designed for the specific extract.

Can it be integrated into a fermentation system?

Yes. It can be incorporated into a broader bioprocess line after suitable upstream clarification and conditioning. Integration may include fermentation vessels, filtration, buffer preparation, pumps, automated valves, detectors, collection tanks, and downstream concentration or drying equipment.

Are detector options available?

The supplied information lists detector ranges of 200–400 nm and 190–700 nm. Single-wavelength, dual-wavelength, and four-wavelength configurations are available as options. The appropriate choice depends on the optical properties of the target compounds and the monitoring requirements of the process.

Are sieve-plate certificates available?

The product information states that imported sieve plates can be selected and import certificates provided. Customers should specify documentation requirements during the quotation and purchase stages.

How does truss grinding benefit the column?

Truss grinding improves the internal surface condition of the column tube. This helps reduce wear on the high-pressure sealing ring, supports smoother piston movement, and may contribute to longer seal service life and easier cleaning.

Can the piston assist with unloading?

Yes. The dynamic piston is designed to support not only bed loading and pressure maintenance but also unloading. Controlled piston movement can make the removal of used stationary phase more efficient, particularly in larger columns.

Is the equipment suitable for turnkey projects?

Yes. The supplier provides process technology and automation engineering design, equipment manufacture, matching procurement, installation, system integration, commissioning, and turnkey project support. The column can therefore be designed as part of a complete extraction, fermentation, pharmaceutical, food, or environmental process line.

What information should be provided when requesting a quotation?

Users should provide the target product, feed composition, stationary phase, desired bed volume, required throughput, mobile phase, operating temperature, expected pressure, cleaning agents, automation requirements, detector needs, installation environment, and applicable documentation or regulatory standards.

15. Conclusion

The dynamic axial compression column provides a controlled and scalable platform for preparative chromatography. Its hydraulic piston system supports loading, compression, pressure maintenance, and unloading, while the specially designed sealing structure allows movement along the column wall without sacrificing pressure retention.

Compared with conventional passive compression systems, the hydraulic design offers more uniform control of the applied force and greater flexibility for different stationary phases and production scales. Truss-ground internal surfaces help protect the high-pressure sealing ring, imported sieve plates support component traceability, and large-column sieve-plate designs improve accessibility, sealing, and liquid distribution.

The model range extends from smaller development and pilot units to large preparative columns with listed infusion-pump capacities up to approximately 5,000 L/h. SS316L construction, detector options, pressure-controlled operation, and integration potential make the equipment suitable for plant extraction, bio-fermentation, pharmaceutical synthesis, natural food processing, and related industrial applications.

Manufacturing strength is supported by stainless-steel fabrication, plasma welding and cutting, CAM CNC machining, internal surface finishing, hydraulic-cylinder sourcing, pilot production facilities, and research-and-development capabilities. The supplier’s EPC and EPCM experience further allows the column to be incorporated into complete process systems rather than treated as an isolated machine.

For users seeking improved packing consistency, scalable capacity, easier maintenance, and stronger process integration, a dynamic axial compression column is a practical solution. Final selection should always be based on process trials, pressure calculations, material compatibility, cleaning requirements, production capacity, and the documentation standards of the intended industry.

References

1. Product specification and technical description for the dynamic axial compression column supplied for this article.

2. Technical information on SUN series infusion-pump capacities, DAC column configurations, working pressures, materials, and detector options.

3. General principles of preparative chromatography, stationary-phase packing, axial compression, bed stability, and liquid distribution.

4. Stainless-steel process equipment engineering practices for pharmaceutical, biological, food, and natural-product applications.

5. Hydraulic system design principles for controlled actuation, pressure maintenance, and industrial process equipment.

6. Good manufacturing practice considerations for process-contact equipment, cleaning, documentation, and equipment qualification.

7. Supplier information concerning process engineering, EPC/EPCM services, pilot production, equipment manufacturing, system integration, and turnkey projects.

Product: Axial Compression Column
